Optimized adapter circuit board and software released

Optimized adapter circuit board and software released

REV C Adapter Highlights:

  • Optimized adapter circuit board and component;
  • New enclosure and package box,more safe;
  • software updated support new wheel with "Mode Switch" dial's LED indicator "Normal S S+" status;
  • Improved scroll button page up down response events in Jukebox musics lists screen,easy access page up and down;

180 degree socket,save space.

Circuit board completed SMD and accelerated aging test.

Adapter kits with new package box.

Enjoy new look and feeling,didn't missing any functions.

Why develop this adapter?

Why develop this adapter?

    New generation of steering wheel design inspiration from the Porsche 918 Spyder steering wheel.The new steering wheel with modular design, can achieve personalized requirement.

Which style do you like?




    New wheel connect to steering control module base LIN BUS 2.0 protocol,it's different with old wheel.Direct install new wheel to old car multifunction and key light&heating can't work.So we development this adapter to fits this upgrade.

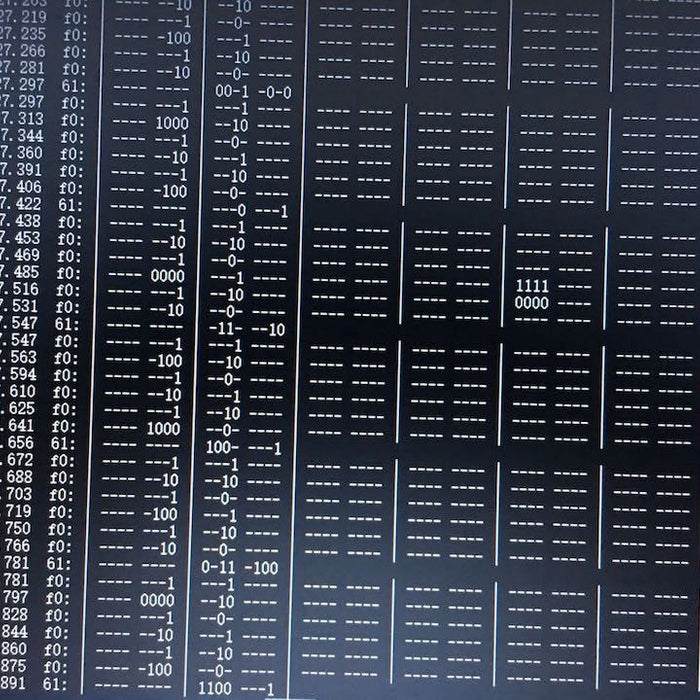

First is analyze old steering wheel with car communication raw data,compare with new steering wheel communication data protocol and data bits.

 Based on the previous analysis works,design and implement the circuit,find the original sockets and plug,connect one to one,it's easy to install.

We chose STM8AF automotive MCU processing LIN BUS protocol data and PWM signals convert.

We conducted six-month real vehicle test and optimization.When environment temperature is 27℃,hottest chip in circuit is LIN BUS transceiver at 39.3℃.

My 2014 Panamera is first user :)

Blow photo is prototype of adapter.

June 1, 2017 We released the first stable version.We are still working on circuits and program optimization.

New case and circuit will be shipped in early July.

 We are continue working with support MODE SWITCH synchronize with center console in 911.Thank you for your trust and support.
